Tribo-X inside ANSYS

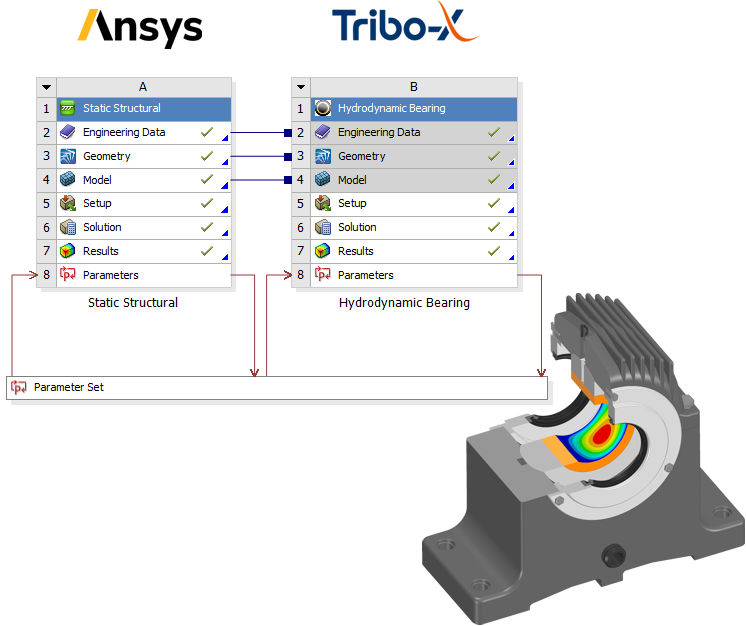

With the integration of the Tribo-X journal bearing module into ANSYS Workbench, in cooperation with CADFEM, the Tribo-X inside ANSYS extension has been developed, which allows the convenient calculation of lubricated journal bearings with ANSYS Mechanical. The basis of the bearing analysis is a CAD bearing model, in which the gap area is automatically detected. The description of the geometry and load of the bearing is parametric in the Workbench project tree. The parameterization enables automated sensitivity and optimization analyses of the bearing. These analyses can be supported by ANSYS DesignXplorer or ANSYS optiSLang.



Tribo-X inside ANSYS

Highlights:

  • short calculation times despite high degree of detailing
  • basis of the bearing analysis is a CAD model with arbitrary gap geometry
  • consideration of elastic deformations of the bearing and their effect on the gap geometry
  • complete simulation of the Stribeck curve by considering mixed friction
  • identification of speed- and load-dependent bearing coefficients
  • fully parametric workflow



Seminars & Webinars for Tribo-X inside ANSYS



Veranstaltungen
TiA Webinare, TiA Seminare

Simulation of Journal Bearings with Tribo-X inside ANSYS

Date: 22.01.2020
Time: 10:00 – 11:00
Language: German

The operating behavior of hydrodynamic journal bearings depends to a large extent on elastic deformations of the bearing environment, occurring temperatures, possible mixed friction conditions, the type of lubricant supply and the lubricant used. Thermal Elastohydrodynamics (TEHD) has been established for the simulation…

Details

Simulation of Journal Bearings with Tribo-X inside ANSYS

Date: 28.04.2020
Time: 10:00 – 11:00
Language: German

The operating behavior of hydrodynamic journal bearings depends to a large extent on elastic deformations of the bearing environment, occurring temperatures, possible mixed friction conditions, the type of lubricant supply and the lubricant used. Thermal Elastohydrodynamics (TEHD) has been established for the simulation…

Details

Simulation of Journal Bearings with Tribo-X inside ANSYS

Date: 01.09.2020
Time: 10:00 – 11:00
Language: German

The operating behavior of hydrodynamic journal bearings depends to a large extent on elastic deformations of the bearing environment, occurring temperatures, possible mixed friction conditions, the type of lubricant supply and the lubricant used. Thermal Elastohydrodynamics (TEHD) has been established for the simulation…

Details

Simulation of Journal Bearings with Tribo-X inside ANSYS

Date: 10.11.2020
Time: 10:00 – 11:00
Language: German

The operating behavior of hydrodynamic journal bearings depends to a large extent on elastic deformations of the bearing environment, occurring temperatures, possible mixed friction conditions, the type of lubricant supply and the lubricant used. Thermal Elastohydrodynamics (TEHD) has been established for the simulation…

Details
All times in CET / CEST unless stated otherwise.

Simulation of Hydrodynamic Journal Bearings with Tribo-X inside ANSYS

Date: 26.11.2019
Time: 09:00 – 17:00
Location: Aadorf (Switzerland)
Language: German

With Tribo-X inside ANSYS, CADFEM and Tribo Technologies have jointly developed a solution that allows the calculation of hydrodynamic journal bearings comfortably and time-efficiently within ANSYS Workbench. The calculation is based on an extended form of the Reynolds differential equation, which has been established…

Details

Simulation of Hydrodynamic Journal Bearings with Tribo-X inside ANSYS

Date: 27.02.2020 – 28.02.2020
Time: 09:00 – 17:00
Location: Dortmund
Language: German

With Tribo-X inside ANSYS, CADFEM and Tribo Technologies have developed a solution that allows the calculation of statically or transiently operated hydrodynamic journal bearings comfortably and efficiently in the ANSYS Workbench. In this seminar you will learn which properties significantly determine the operating behavior…

Details

Simulation of Hydrodynamic Journal Bearings with Tribo-X inside ANSYS

Date: 26.05.2020 – 27.05.2020
Time: 09:00 – 17:00
Location: Berlin
Language: German

With Tribo-X inside ANSYS, CADFEM and Tribo Technologies have developed a solution that allows the calculation of statically or transiently operated hydrodynamic journal bearings comfortably and efficiently in the ANSYS Workbench. In this seminar you will learn which properties significantly determine the operating behavior…

Details

Simulation of Hydrodynamic Journal Bearings with Tribo-X inside ANSYS

Date: 29.09.2020 – 30.09.2020
Time: 09:00 – 17:00
Location: Leinfelden-Echterdingen
Language: German

With Tribo-X inside ANSYS, CADFEM and Tribo Technologies have developed a solution that allows the calculation of statically or transiently operated hydrodynamic journal bearings comfortably and efficiently in the ANSYS Workbench. In this seminar you will learn which properties significantly determine the operating behavior…

Details

Simulation of Hydrodynamic Journal Bearings with Tribo-X inside ANSYS

Date: 10.12.2020 – 11.12.2020
Time: 09:00 – 17:00
Location: Vienna (Austria)
Language: German

With Tribo-X inside ANSYS, CADFEM and Tribo Technologies have developed a solution that allows the calculation of statically or transiently operated hydrodynamic journal bearings comfortably and efficiently in the ANSYS Workbench. In this seminar you will learn which properties significantly determine the operating behavior…

Details
All times in CET / CEST unless stated otherwise.
